0201技术

Current Location: Home >> Technology >> 0201

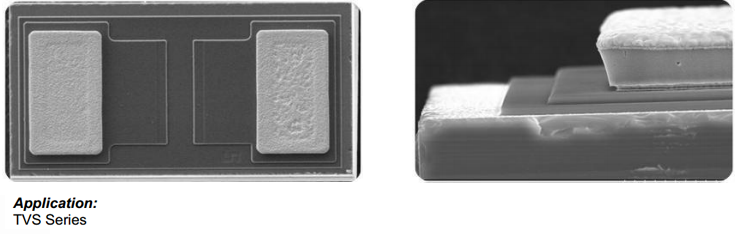

      Making TVS devices by using Wafer-Level Packaging technology can obviously reduce device size and significantly improve electrical performance and reliability, shorten the package time and lower cost, which was widely used in mobile phones, MP3 players, PDAs and digital cameras and other portable electronic products to provide protection and improve its reliability.




ltem

Standard

Other

Die Size Without Dicing Street

570x270um

NA

Dicing Street

60um

No metal allowed in the dicing street

Bump pitch

400um within

Follow customer requirement

Bump Size

120X210um

Follow customer requirement

Bump Height

11um(Cu 8um+Sn 3um)

Only Bake and no feflow allowed

BG Thickness

265um

Follow customer requirement
